Magnets > Custom Magnet Assemblies
SHOP CUSTOM MAGNET ASSEMBLIES BELOW
For over 50 years Storch Magnetics has assisted industry professionals in application design, and engineering Custom Magnet Solutions. Magnets from simple to complex, prototype to production, with thousands of varied customer requirements met.
Click here for more information on Custom Assemblies that are available from Storch!
Tell us how we may help! For information or a quote, please contact us.
-

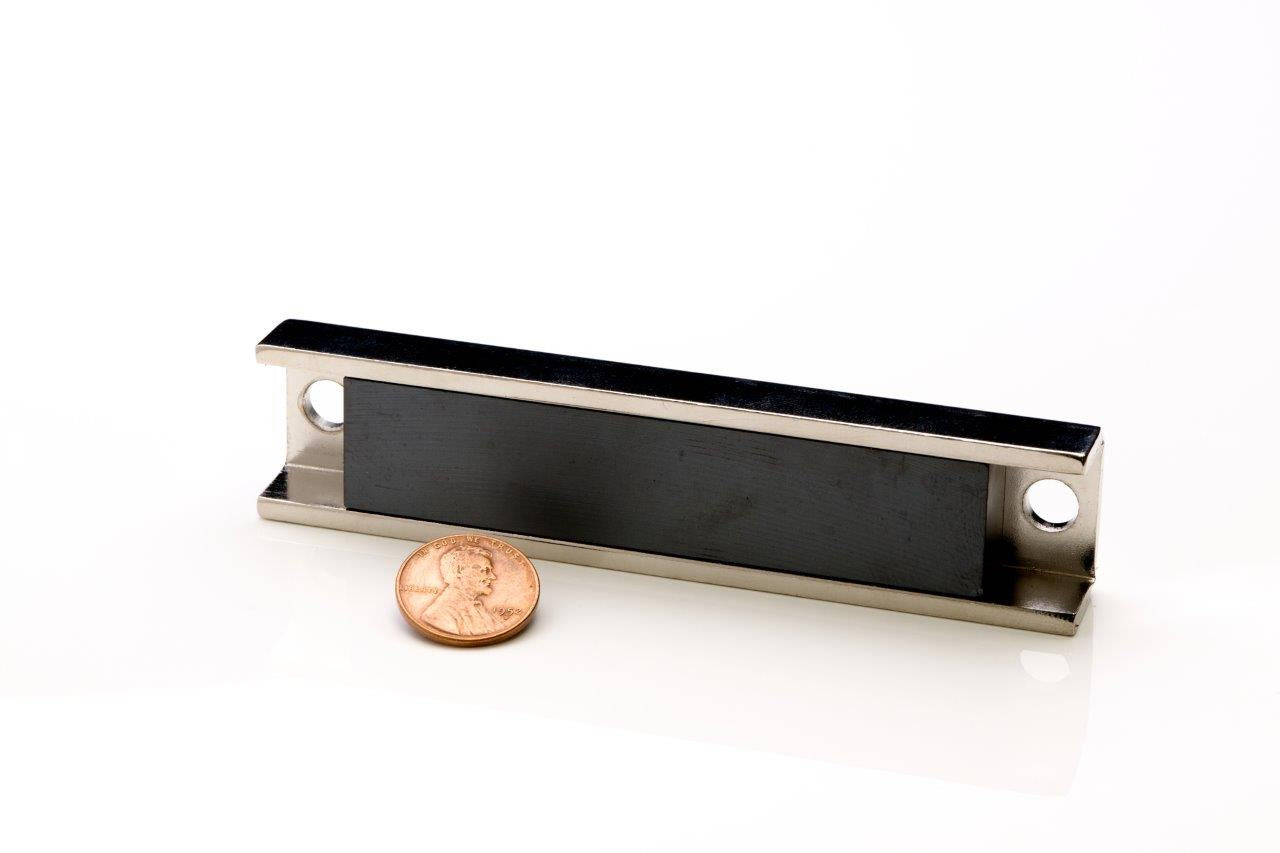

Ceramic Rectangular Magnet Assembly 0.56" H x 1.063" W x 4.5" L - Grade C8, Nickel plated finish
$5.84In stockmagnet, ceramic, assembly, 0.560'' x 1.063'' x 4.50'' - ceramic channel - 2 9/32'' holes on 4'' centers
-
Ceramic Round Magnet Assembly 2.625" Diameter x 0.375" H - Grade C8, Nickel plated finish
$5.40In stockmagnet, ceramic, assembly, 2.625'' x .375'' - 0.281'' through hole, nickel plated
-
AlNiCo Round Magnet Assembly 1.25" Diameter x 1" H - Grade A5
$16.63In stock(Revision: 0) magnet, AlNiCo 5, holding assembly, 1.250'' diameter x 1.000'' long - tapped hole 1/4''-20
-
AlNiCo Round Magnet Assembly 0.75" Diameter x 0.5" H - Grade A5
$9.72In stockmagnet, AlNiCo 5, holding assembly, 0.750'' diameter x 0.500'' long - tapped hole #10-32
-
Neodymium Round Magnet Assembly 0.375" Diameter x 0.75" H - Grade N35
$7.56In stockmagnet, Neodymium, holding assembly, 0.375'' diameter x 0.750'' long - tapped hole - E-1141.
-

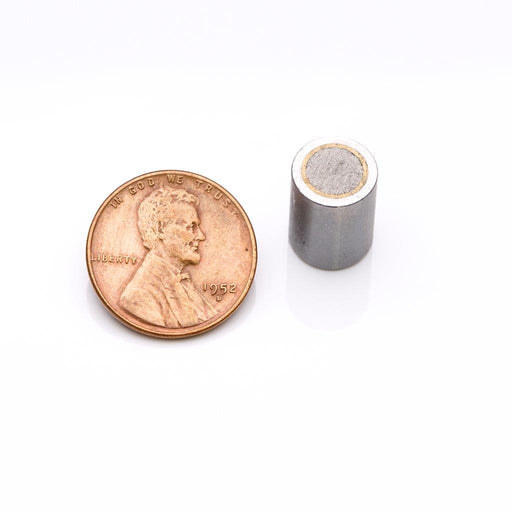

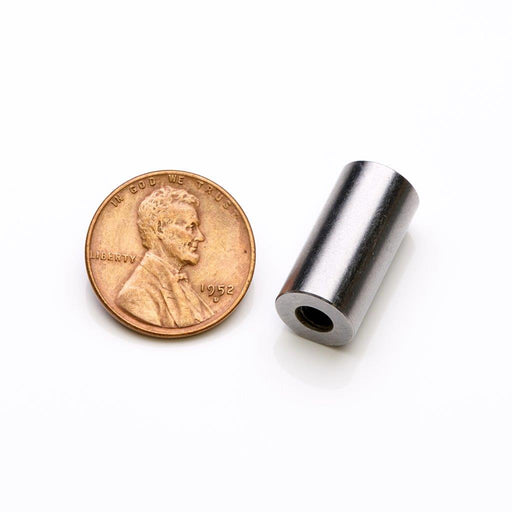

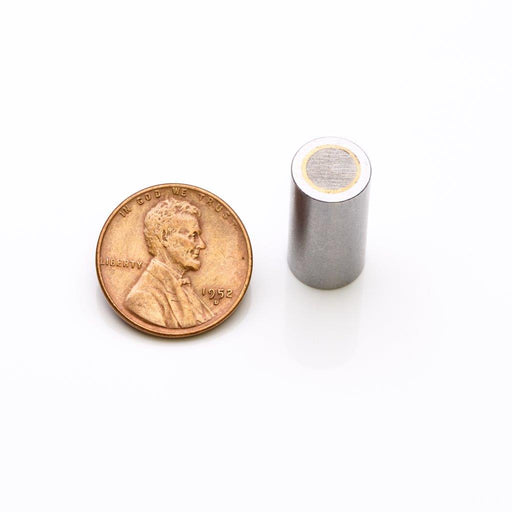

AlNiCo Round Magnet Assembly 0.375" Diameter x 0.75" H - Grade A5
$7.05In stockmagnet, AlNiCo 5, holding assembly, 0.375'' diameter x 0.750'' long - tapped hole #8-32
-
AlNiCo Round Magnet Assembly 0.375" Diameter x 0.75" H - Grade A5, Brass sleeved finish
$8.64Low stockmagnet, AlNiCo 5, round brass sleeved holding assembly, 0.375'' diameter x 0.750'' long
-
Neodymium Round Magnet Assembly 0.312" Diameter x 0.5" H - Grade N35, Brass sleeved finish
$10.30In stockmagnet, Neodymium, round brass sleeved holding assembly, 0.312'' diameter x 0.500'' long
-
AlNiCo Round Magnet Assembly 0.375" Diameter x 0.5" H - Grade A5
$6.16In stockmagnet, AlNiCo 5, holding assembly, 0.375'' diameter x 0.500'' long - tapped hole #8-32
-
Ceramic Round Magnet Assembly 0.75" Diameter x 0.875" H - Grade C8
$7.25In stockmagnet, ceramic, round holding assembly, 0.750'' diameter x 0.875'' long - 3-pole with #10-24 tapped hole 0.186 '' deep
-

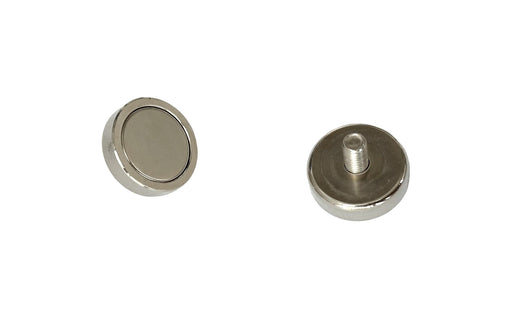

Neodymium Round Magnet Assembly 0.984" Diameter x 0.276" H - Grade N38, Nickel plated finish
$10.59Out of stockmagnet, Neodymium, assembly, 25mm OD x 7mm Thick - nickel plated with #6 threaded stud. (10mm stud, 17mm overall height)
-
Neodymium Rectangular Magnet Assembly 0.38" H x 0.75" W x 2.5" L - Grade N42, Nickel plated finish
$13.50Out of stockmagnet, Neodymium 42, channel assembly, 0.380'' x 0.750'' x 2.500'' - 2 #8 counter sunk holes on 1 3/4'' centers - nickel plated
-
Neodymium Round Magnet Assembly 0.62" Diameter x 0.197" H - Grade N38, Nickel plated finish
$2.16In stockmagnet, Neodymium, assembly, 0.620'' x 0.197'' - nickel plated
-

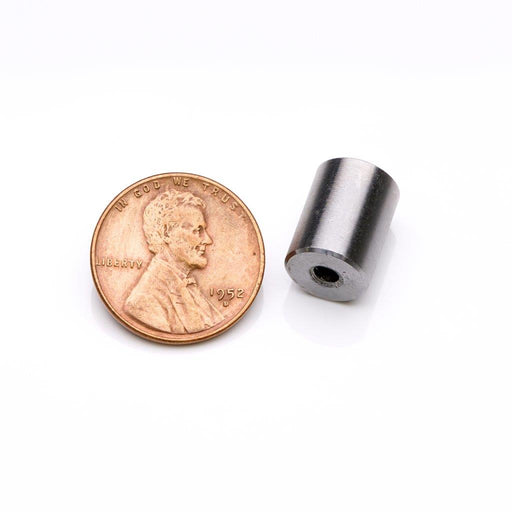

SmCo Round Magnet Assembly 0.375" Diameter x 0.5" H - Grade SmCo32
$7.25In stockmagnet, SmCo, holding assembly, 0.375'' diameter x 0.500'' long - tapped hole with 6/32 tap
-
Ceramic Horseshoe Magnet Assembly 0.375" H x 1.125" W x 2.375" L - Grade C8, Nickel plated finish
$16.00Low stock(Revision: 0) magnet, ceramic, horseshoe holding assembly, 0.375'' x 1.125'' x 2.375'' - #10-24 x 0.125'' tapped hole - dwg: E-1063
-
Ceramic Round Magnet Assembly 4.9" Diameter x 0.5" H - Grade C8, Nickel plated finish
$14.48Low stockmagnet, ceramic, assembly, 4.900'' x 0.500'' - 0.500'' through hole - chrome plated (bulk pack)
-
Ceramic Horseshoe Magnet Assembly 0.563" H x 2.375" W x 2.75" L - Grade C8, Nickel plated finish
$17.28In stockmagnet, ceramic, horseshoe holding assembly, 0.563'' x 2.375'' x 2.750'' - counter bore hole for 1/4'' cap screw
-
Ceramic Horseshoe Magnet Assembly 0.563" H x 2.375" W x 1.125" L - Grade C8, Nickel plated finish
$11.06In stockmagnet, ceramic, horseshoe holding assembly , 0.563'' x 1.125'' x 2.375'' - two #10-24 x 0.875 studs
-
Neodymium Round Magnet Assembly 1.42" Diameter x 0.29" H - Grade N8, Nickel plated finish
$6.48Out of stockNEO Assy 1.420 dia x .290'' lg, Nickel plated with 0.26 dia thru hole with 90 degree C-sink.
-
Ceramic Round Magnet Assembly 3.2" Diameter x 0.438" H - Grade C8, Nickel plated finish
$5.94In stockmagnet, ceramic, assembly, 3.200'' x 0.438'' - 0.281'' through hole - nickel plated
-

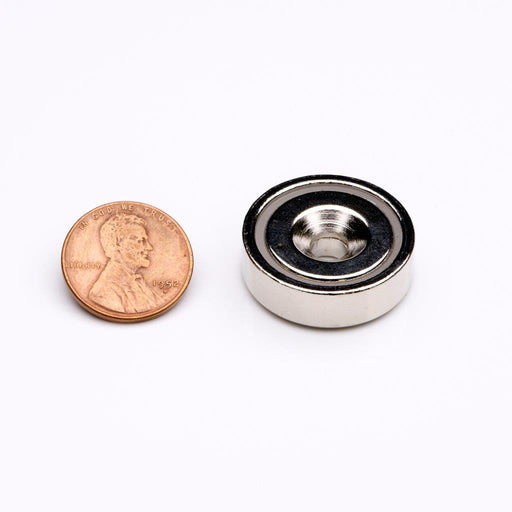

Neodymium Round Magnet Assembly 0.98" Diameter x 0.27" H - Grade N38, Nickel plated finish
$4.42In stockmagnet, Neodymium, assembly, 0.980'' x 0.270'' - nickel plated - 49 lbs holding
-
Neodymium Round Magnet Assembly 0.551" Diameter x 0.511" H - Grade N40, Nickel plated finish
$10.80In stock(Revision: 0) magnet, Neodymium, assembly, 14.0mm x 7.0mm x 13.0mm - assembly, screwdriver magnet - MF size D.
-
Ceramic Round Magnet Assembly 2.03" Diameter x 0.313" H - Grade C8, Nickel plated finish
$4.20In stockmagnet, ceramic, assembly, 2.030'' x 0.313'' Chrome - 0.188'' diameter through hole
-
Ceramic Rectangular Magnet Assembly 0.46" H x 1.045" W x 2.7" L - Grade C8, Nickel plated finish
$4.27In stockmagnet, ceramic, assembly, 0.460'' x 1.045'' x 2.700'' - ceramic channel - 2 3/16'' slots on 2 3/4'' centers
-
Ceramic Round Magnet Assembly 1.4" Diameter x 0.281" H - Grade C8, Nickel plated finish
$2.01In stockmagnet, ceramic, assembly, assembly, 1.400'' x 0.281'' - nickel plated - 0.188'' diameter through hole.
-

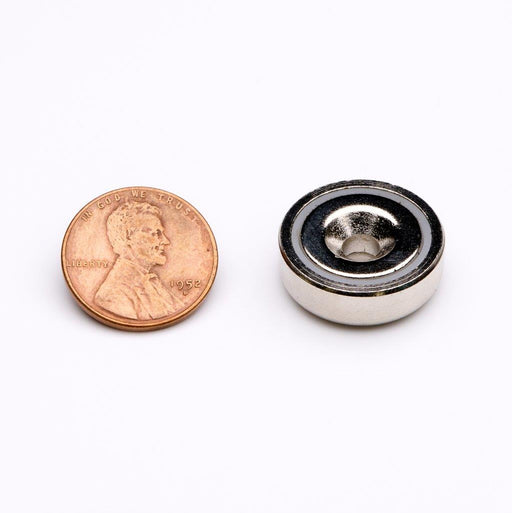

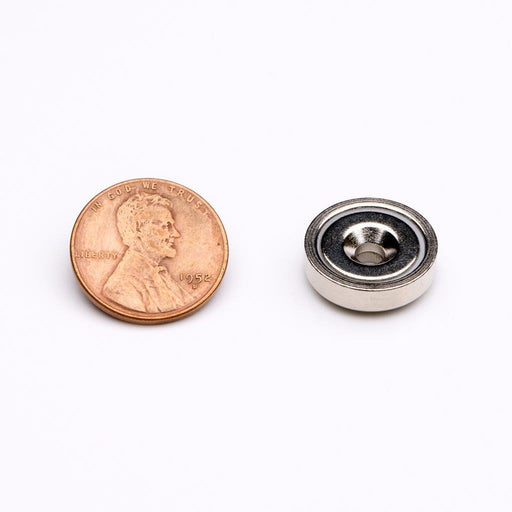

Neodymium Round Magnet Assembly 0.8" Diameter x 0.28" H - Grade N38, Nickel plated finish
$2.68In stockmagnet, Neodymium, assembly, 0.800'' Diameter x 0.280'' Thick- nickel plated .160 Diameter through hole with 90-degree countersink.
-
Ceramic Round Magnet Assembly 1.205" Diameter x 0.188" H - Grade C8, Nickel plated finish
$1.22In stockmagnet, ceramic, round assembly, 1.205'' x 0.188'' - nickel plated
-
Ceramic Rectangular Magnet Assembly 0.25" H x 0.88" W x 1" L - Grade C8, Nickel plated finish
$1.46In stockmagnet, ceramic, assembly, 0.250'' x 0.880'' x 1.000'' - channel (bulk pack)
-
AlNiCo Horseshoe Magnet Assembly 2.187" H x 1.93" W x 2.5" L - Grade A5, Neoprene covered finish
$110.14Low stockBase Magnet 1-5/16x2-3/16 - Base Magnet Alnico 5 Neoprene Covered, 1 15/16'' x 2 1/2'' with 1/4 Thru Hole for Mounting, 45# Plus of Holding Capacity.
-
AlNiCo Round Magnet Assembly 2.125" Diameter x 1.25" H - Grade A5, Brass sleeved finish
$73.84In stock(Revision: 0) magnet, AlNiCo, round holding assembly, 2.125 dia x 1.25 long. 8-pole - brass encased - dwg: E 1341
-
Neodymium Round Magnet Assembly 1.25" Diameter x 1" H - Grade N35
$33.86In stockmagnet, Neodymium, holding assembly, 1.250'' diameter x 1.000'' long - tapped hole 1/4''-20, plated cup plated magnet.
-
Ceramic Round Magnet Assembly 0.875" Diameter x 1.25" H - Grade C8
$9.39Low stock(Revision: 0) magnet, ceramic, round holding assembly, 0.875'' diameter x 1.250'' long - 3-pole
-
Ceramic Horseshoe Magnet Assembly 0.375" H x 1.125" W x 2.375" L - Grade C8
$12.68Low stock(Revision: 0) magnet, ceramic, horseshoe holding assembly , 0.375'' x 1.125'' x 2.375'' - horseshoe holding assembly
-
Ceramic Round Magnet Assembly 1.25" Diameter x 1.25" H - Grade C8
$20.34Low stockmagnet, ceramic, round holding assembly, 1.250'' diameter x 1.250'' long - 3-pole with 1/4''-20 tapped hole 0.250 '' deep
-

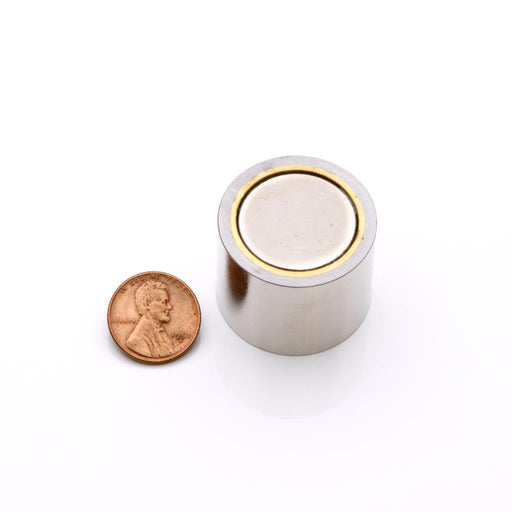

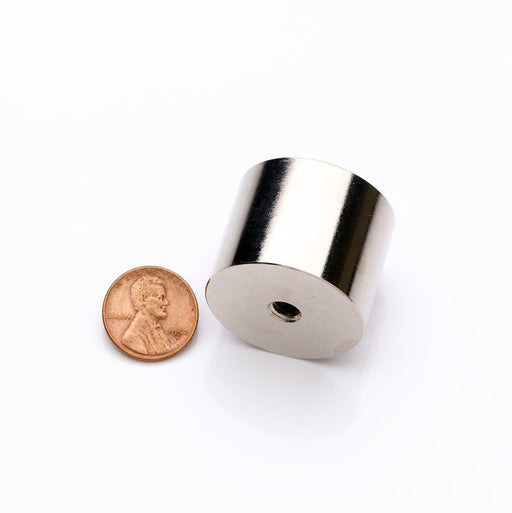

Neodymium Round Magnet Assembly 1" Diameter x 0.75" H - Grade N38, Brass sleeved finish
$30.25In stockmagnet, Neodymium 38, assembly, 1.000'' x 0.750'' - 1/4''-20 UNC tapped hole - brass Insulated - Ni-Cu-Ni plated cup and magnet - dwg: E-3687.
-

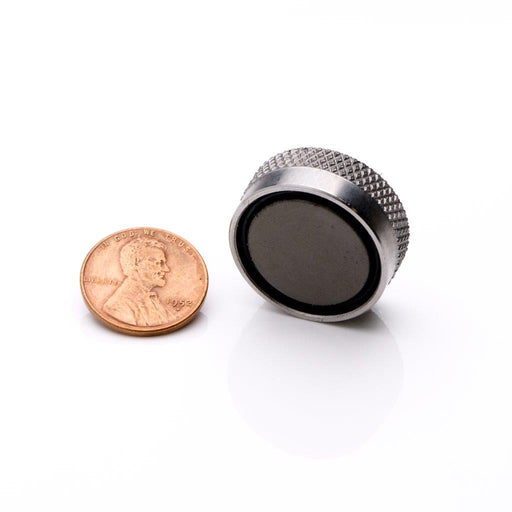

Neodymium Round Magnet Assembly 1" Diameter x 0.375" H - Grade N35
$21.50In stockmagnet, Neodymium, assembly, 1.000'' x 0.375'' - knurled stainless-steel cup - `20 lbs. holding value.
