Ceramic Round Magnet Assembly 0.875" Diameter x 1" H - Grade C8
SKU 2202-T-16
Availability:
155 in stock, ready to be shipped
Original price
$10.39
-
Original price
$10.39
Original price
$10.39
$10.39
-
$10.39
Current price
$10.39
Have a question about this product?
Our team is ready to help!
Call 1.800.959.0047 or Email us
Looking to buy in bulk? Request quote

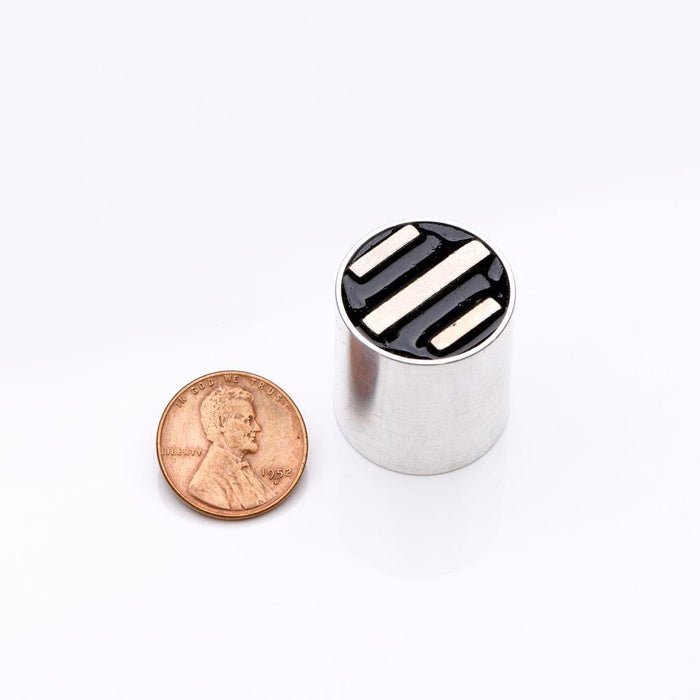

magnet, ceramic, round holding assembly, 0.875'' diameter x 1.000'' long - 3-pole with 1/4''-20 tapped hole 0.250'' deep
Product Specifications
Magnet Type: Ceramic
Magnet Grade: 8
Magnet Shape: ["Round"]
Pull Force: 16.60
Magnetic Field Orientation: 1
Max Working Temp: 180
Curie Temp: 842
Outer Diameter (in): 0.8750
Outer Diameter (mm): 22.225
Inner Diameter (mm): 0
Thickness (mm): 25.4
Magnet Width (mm): 0
Magnet Length (mm): 0
Magnet Tapped Hole Details: 1/4''-20 tapped hole 0.250'' deep
Magnet Grade: 8
Magnet Shape: ["Round"]
Pull Force: 16.60
Magnetic Field Orientation: 1
Max Working Temp: 180
Curie Temp: 842
Outer Diameter (in): 0.8750
Outer Diameter (mm): 22.225
Inner Diameter (mm): 0
Thickness (mm): 25.4
Magnet Width (mm): 0
Magnet Length (mm): 0
Magnet Tapped Hole Details: 1/4''-20 tapped hole 0.250'' deep
